The photoelectrochemical cell is suitable for supporting equipment with horizontal and horizontal illumination of the light source. The three electrodes are on the upper part,and the working electrode should be as close as possible to the side of the light window.A vertical electrode clamp or a horizontal electrode clamp can be used to clamp the material for testing,so that the optical instrument can detect the working electrode from the side quartz light window.
The sealed photoelectrochemical cell is an optical reactor that is widely used.
1.The main body of the electrolytic cell is customized with nylon material, equipped with JGS2 quartz plate.The size of the quartz plate is 50*50*3mm. The spectral application range of JGS2 optical quartz glass is 220-2500nm.

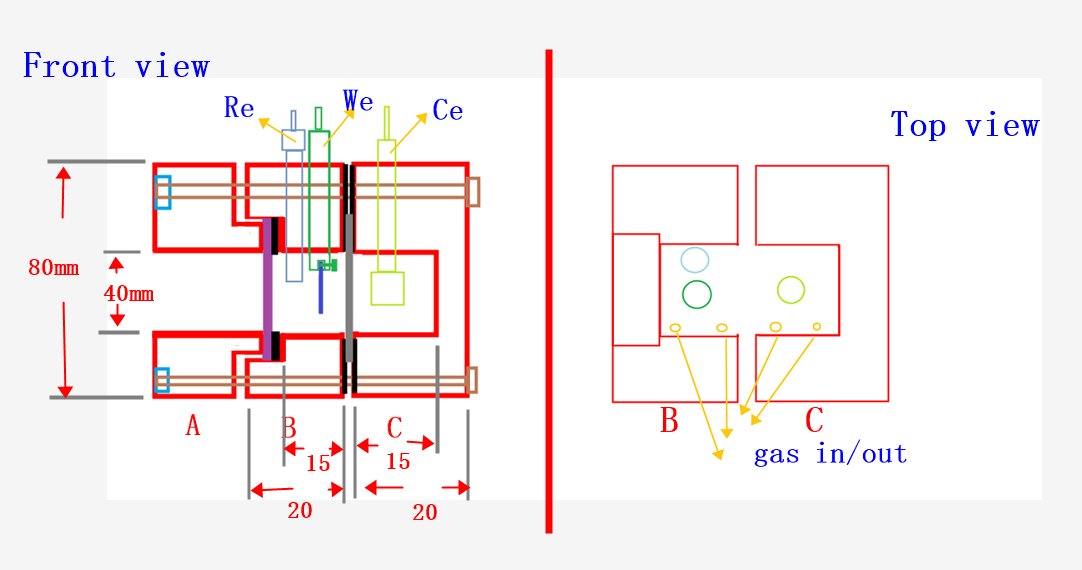

2.The outer size of the electrochemical cell is 80*80mm, which is assembled into a whole by four stainless steel screws.
3.The cathode chamber and anode chamber of the electrochemical cell are independent, and an ion membrane needs to be placed in the middle to separate it. The ion membrane size is recommended to be 50*50mm.
4.The reference electrode can be purchased separately: silver chloride electrode, silver ion electrode, calomel electrode, mercurous sulfate electrode, mercury oxide electrode, etc..
5.The counter electrode can be purchased separately:platinum wire electrode,platinum sheet electrode,graphite electrode,etc.
6.The working electrode can be purchased separately:PEEK replaceable electrode holder.
7.The effective diameter of the light window is 40*40mm.
1.This is a customized item, we can't offer any refund or exchange. If you have any questions before purchasing, please feel free to communicate with us.
2.Three electrodes (working electrode, counter electrode, reference electrode) need to be purchased separately.
3.Be sure to keep the material surface of the working electrode facing the quartz plate in advance, so that the light can reach the material supplier.
Product Includes: 3 * Nylon plate chamber 2 * Quartz window sheet 8 * Stainless steel screw 6 * electrode hole sealing screw 8 * gas hole sealing screw 1 * PTFE tube φ3mm 6 * Light window fluorine rubber gasket 10 * Ion membrane sealing fluorine rubber gasket 20 * fluorine rubber O-ring
